Counter Weight Girafe
(CWG)
Portable Counterweight Anchor for Work at Height
Compliance With
Counter-Weight Girafe (CWG): Stability Meets Versatility. The Counter-Weight Girafe (CWG) is a heavy-duty portable anchor system designed for industrial environments where permanent anchor points are unavailable or impractical. Using a high-stability counterweight base, CWG creates a certified fall protection anchor point that can be deployed quickly for indoor and outdoor work at height applications.

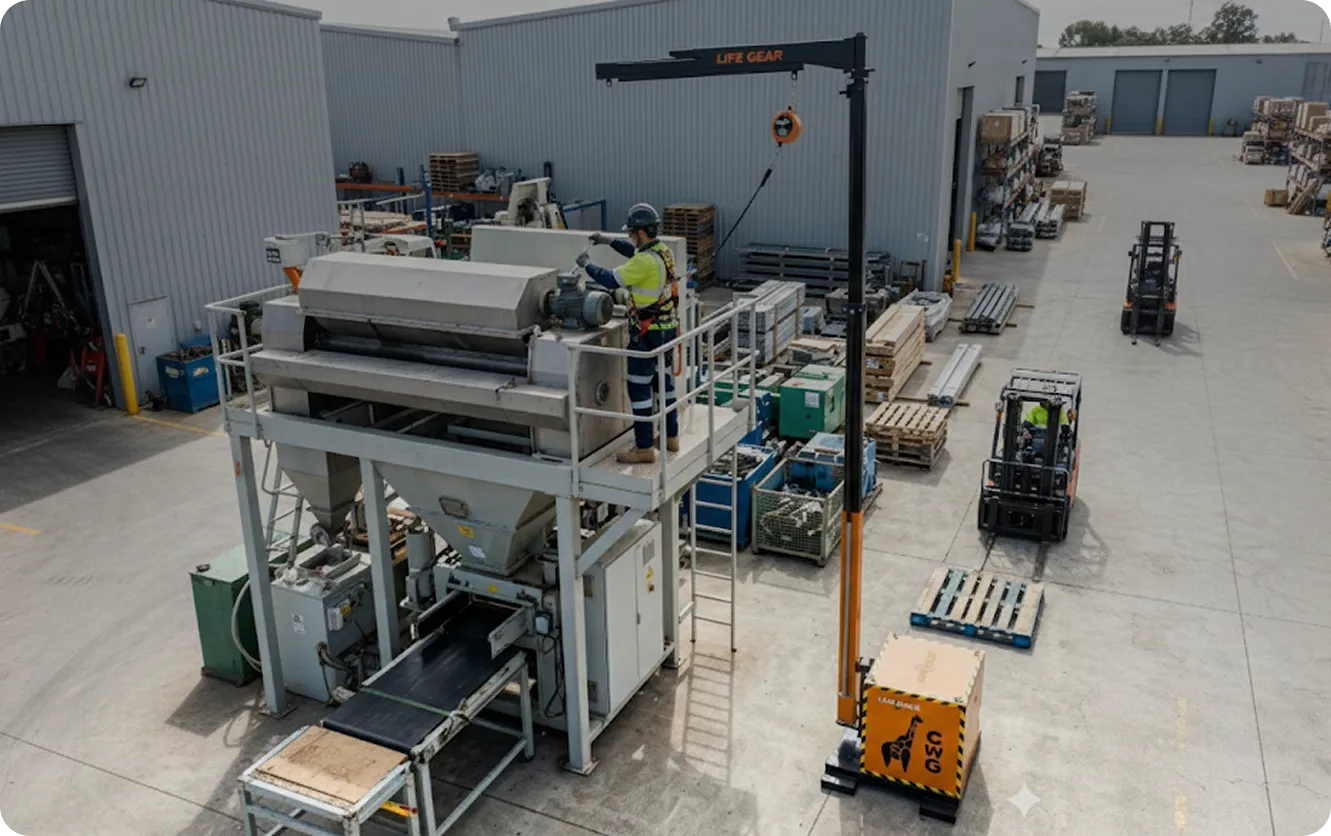

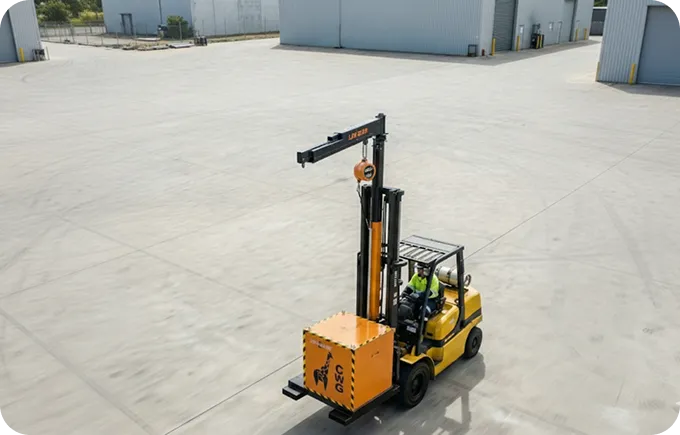

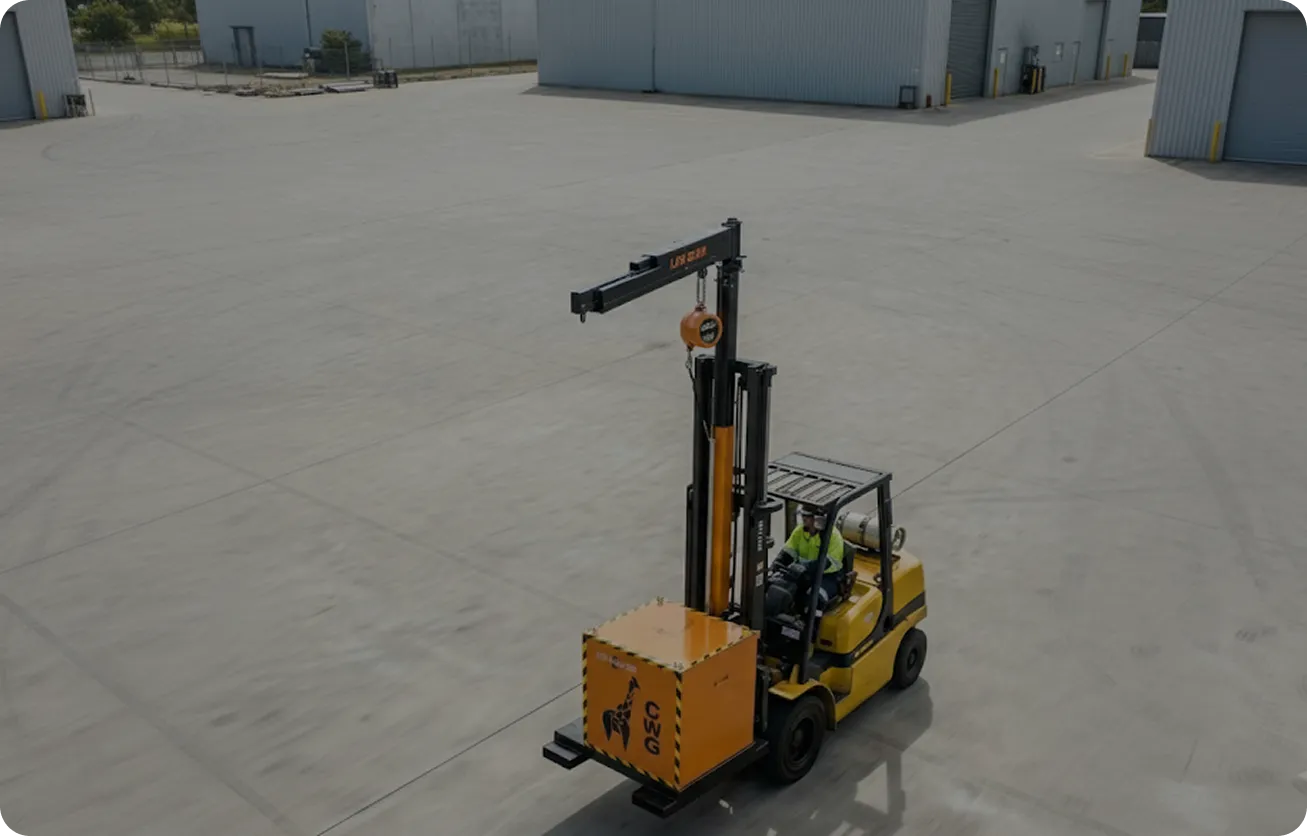

Ideal for truck loading bays, warehouses, factories, heavy machinery maintenance, plant shutdowns, and temporary access work, the telescopic mast extends up to 7 meters to keep workers safely connected above the work zone. The unit can be repositioned easily using a forklift, making CWG one of the most flexible mobile fall protection systems for modern industrial sites.

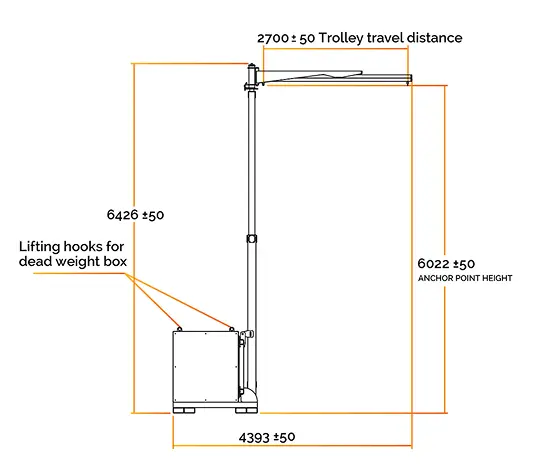

| Specification Value | Value |
|---|---|
| Total Height | 6.5 m |
| Two Stage Adjustable Mast | 2.5 m |
| Mounting Bracket | Permanent Vertical |
| Structural Base | Steel Base |

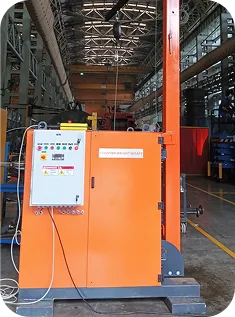

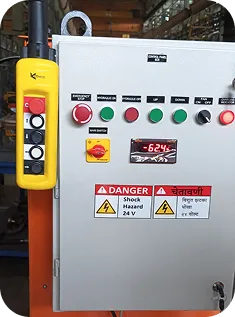

| Lifting Power Device | Hydraulic (AC) |
| Stabilized Transportation | Stabilizer Base |
| Offset / Reach | 3 m |
| Max Arm Length | 2.7 m (8.9 ft) |

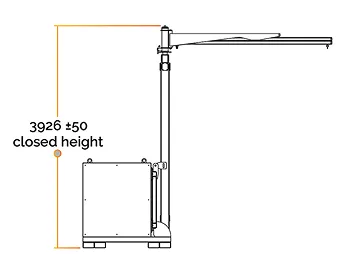

| Minimum Height | 4 m (13 ft) |
| Maximum Height | 6.4 m (21 ft) |

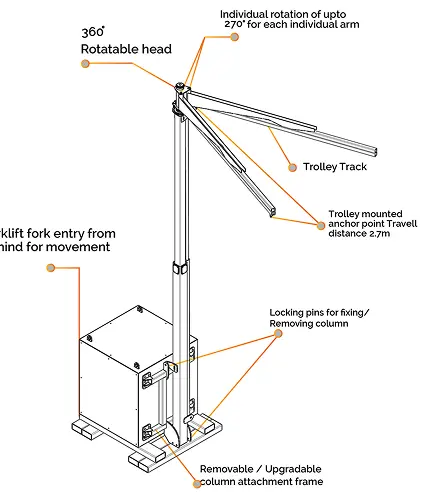

| Rotation Range | Independent movement with lock 360° / 180° |
| Anchor Arms | 3 m double extended with 360° / 180° rotation |
| Anchor Arms Safe Working Load | 140 kg + 140 kg = 280 kg (each arm = 140 kg) |
| Minimum Breaking Strength (BS EN 795:2012) | 12 kN |
Secure Your Site in Minutes:Get the Portable Power of CWG Today.
7 Meters of Safety, Anywhere You Need ItSwitch to CWG for Versatile Fall Protection.
No Anchors? No Problem. Deploy theCounter-Weight Girafe for Instant OSHACompliant Safety.
•Ultimate Portability: No drilling or floor mounting required; simply place it where you need it.
•7-Meter Reach: High-neck anchor point provides ample clearance for various working-at-height scenarios.

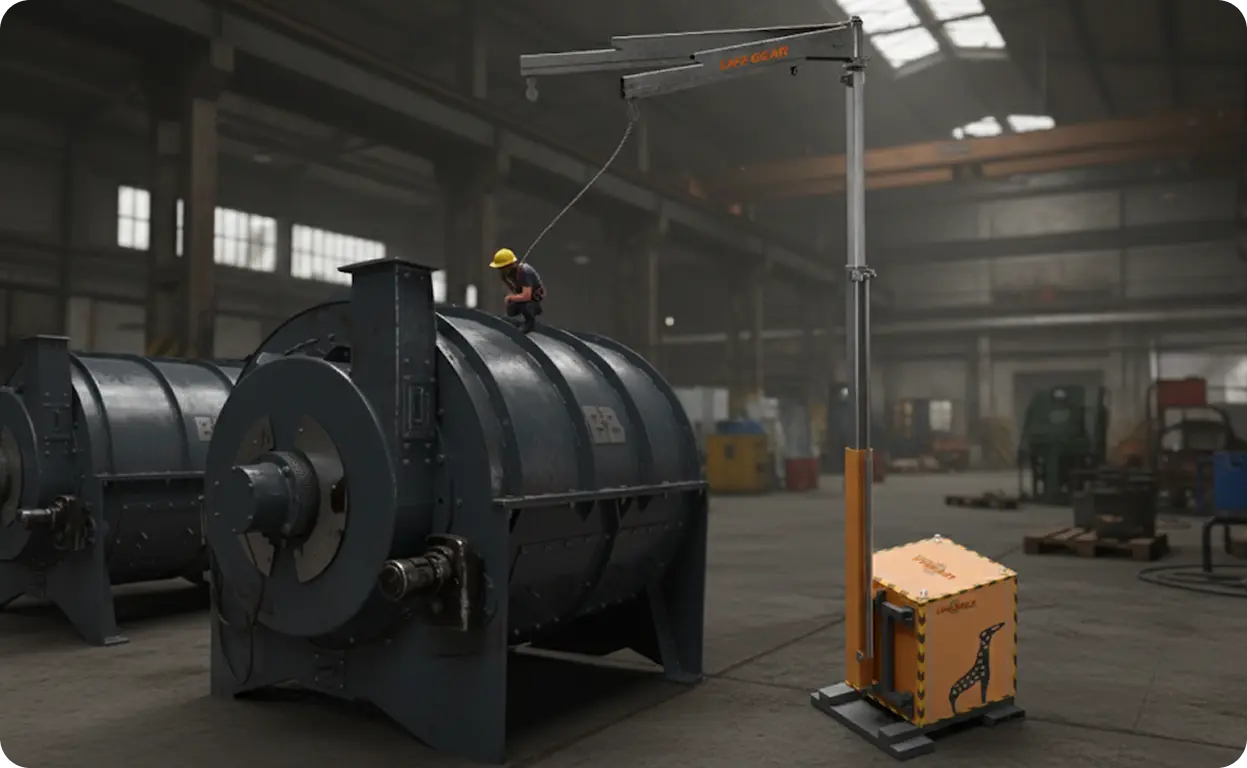

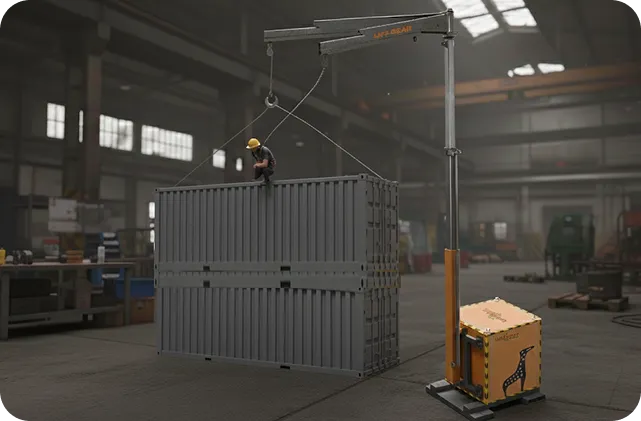

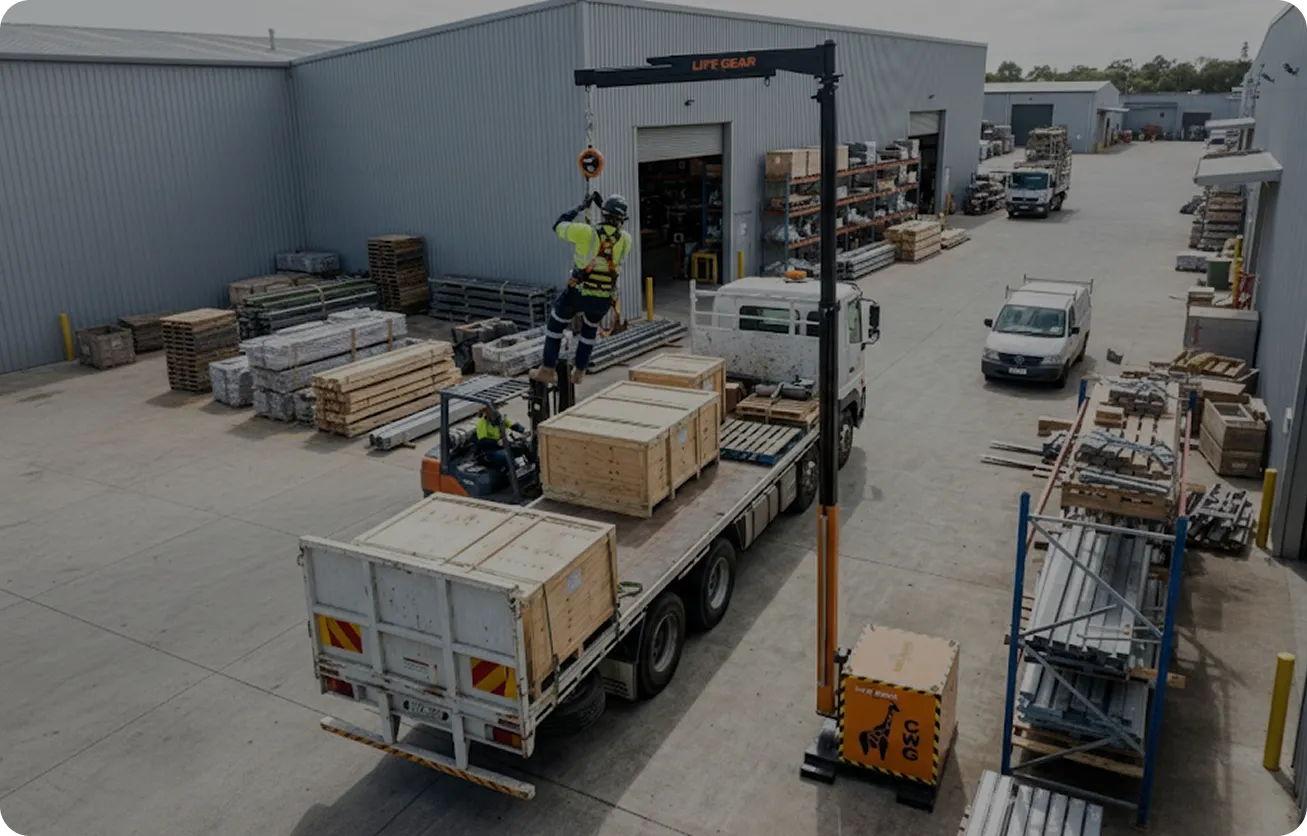

•Universal Application: Perfectly suited for truck loading/unloading, machine maintenance, and warehouse operations.
•Rapid Deployment: Minimal setup time allows your crew to focus on the task at hand without compromising safety.
Maximum Safety. Zero Compromise
